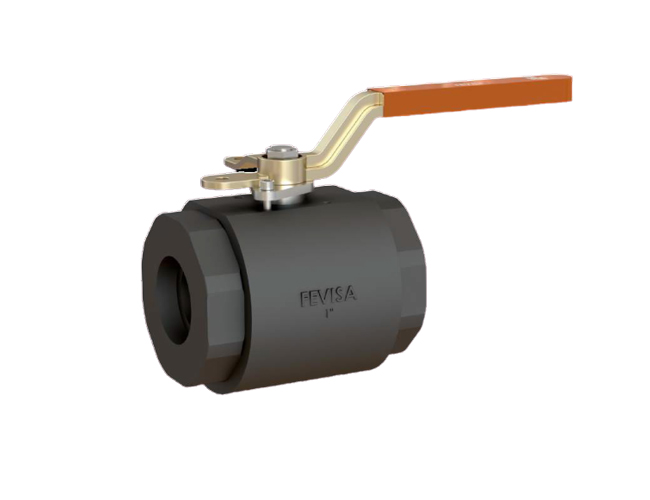

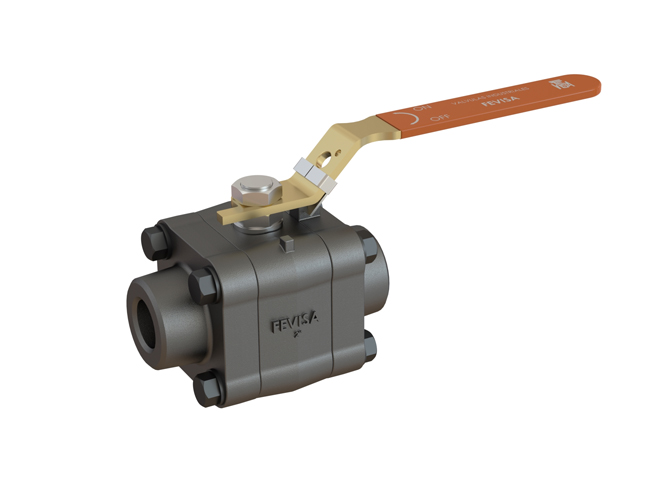

Floating Ball Valves

Size ½” up to 10“(DN 15 up to DN 250)

• ½’’ to 10’’ –150#
• ½’’ to 8’’ –300# ­­­­
• ½’’ to 4’’ –600#
• ½’’ to 1 ½’’ –900#, 1500# & 2500#

Pressure Rating: ASME 150# to 2500#

Materials:  Carbon Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.

Seating: Soft Seated (PTFE/RPTFE /PEEK/NYLON/DEVLON) and Metal Seated

End Connection: Flanged RF/RTJ, BW, FNPT & SW Ends

Operator / Actuator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Motorised, Electro-Hydraulic)

Specification & Standards:

• Design – ASME B16.34/BS5351
• Face to Face – ASME B16.10
• End Flange – ASME B16.5
• BW End – ASME B16.25
• Test – API598/API6D
• Fire Safe Test – API607/API6FA
• Special – NACE MR-01-75

Features:

• One Piece, Two Piece, Three Piece, Fully Welded
• Anti- Static Device
• Blow- Out Proof Stem
• Fire Safe Design
• Low Emission
